DISC PTC Resettable Fuse JK-H SERIES Polymer Over Current Protection For 18650 & 16650

Name: DISC PTC Resettable Fuse JKH SERIES Polymer Over Current Protection For 18650 amp 16650
Brand: JINKE
Price: 0.03 USD

Brand Name : JINKE

Model Number : P-070~ P-900

Certification : TUV, UL, CSA

Place of Origin : China

MOQ : 1000pcs

Price : USD0.03~0.3 piece

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability : 10000000 pcs per month

Delivery Time : 7-10 work days

Packaging Details : plstic bag & carton packing

Product name : 18650 & 16650 battery protection Resettable fuse

Mounting type : SMD

Voltage : 15V - 24V

Current : 1.5~5.0A

OEM \ ODM availbility : Yes

Delivery time : A week

SPQ : 1000pcs / 2000pcs per bag

Usage : Resettable

Safety standards : CSA,UL,ROHS

Breaking capacity : High

Contact Now

JK-H SERIES Polymer PTC for 18650 & 16650 DISC Over Current Protection Resettable Fuse

Product Information

The JK H Seris SMD type resettable pptc thermal fuse is special for 18650 and 16650 li-ion battery over current protection. Highest current can be reach 10 Amp, which operation current can be from 1.2A to 10A. Maximum Voltage is 10Vdc ,Operating Temperature:-40℃ TO 85℃ .Dimension is free by customize.

1. Electrical parameters

Model	Ihold	Itrip	Vmax	Imax	Maximum Time-to-trip		Rmin	Rmax	R1max
	(A)	(A)	(V)	(A)	Current(A)	Time(S)	(Ω)	(Ω)	(Ω)
JK-H1	3.5	7.0	15	50	10	10	9	16	32
JK-H1-2	3.5	7.0	15	50	10	10	9	16	32
JK-H1-3	3.5	7.0	15	50	10	10	9	16	32
JK-H2	3.5	7.0	15	50	10	10	9	16	32
JK-H3	1.75	3.5	15	50	8.75	5	9	64	128
JK-H3-2	1.75	3.5	15	50	8.75	5	15	32	64
JK-H3-3	3.5	7.0	15	50	10	10	9	16	32
JK-H4	3.5	7.0	15	50	10	10	9	16	32
JK-H5	3.5	7.0	15	50	10	10	9	16	32
JK-H6	3.5	7.0	15	50	10	10	9	16	32
JK-H7	3.5	7.0	15	50	10	10	9	16	32
JK-H8	1.8	3.6	24	50	9	5	41	60	120
JK-H9	5.0	10.0	15	50	25	5	3	7	14
JK-H10	5.0	10.0	15	50	25	5	2.5	3.5	7
JK-H11	3.5	7.0	15	50	15	10	9	16	32
JK-H12	3.5	7.0	15	50	15	10	9	16	32
JK-H13	5.0	10.0	15	50	15	10	3	16	32

I_H=Hold current:maximumcurrent at which the device will not trip at 25℃ still air.
I_T=Trip current:minimumcurrent at which the device will nalways at 25℃ still air.
V_max=Maximum voltagedevice can withstand without damage at rated current.
I_max=Maximum faultcurrent device can withstand tithout damage at rated voltage.
T_trip=Maximum time totrip(s) at assigned current.
P_d=Typical powerdissipation:typical amount of power dissipated by the decice when in state airenvironment.
R_min=Minimum deviceresistance at 25℃ prior to tripping.
R_max=Maximum deviceresistance at 25℃ prior to tripping.

2. Dimension Details

DISC PTC Resettable Fuse JK-H SERIES Polymer Over Current Protection For 18650 & 16650

Model	A		B		C		E		Pigure
Model	Min	Max	Min	Max	Min	Max	Min	Max	Pigure
JK-H1	16.25	16.35	9.95	10.05	0.25	0.35			Fig.1
JK-H1-2	16.46	16.51	9.95	10.05	0.25	0.35			Fig.1
JK-H1-3	16.35	16.45	9.95	10.05	0.25	0.35			Fig.1
JK-H2	16.45	16.55	9.95	10.05	0.25	0.35			Fig.1
JK-H3	14.35	14.45	6.25	6.35	0.25	0.35			Fig.1
JK-H3-2	14.15	14.25	6.45	6.55	0.25	0.35			Fig.1
JK-H3-3	14.65	14.75	9.45	9.55	0.25	0.35			Fig.1
JK-H4	12.10	12.20	7.25	7.35	0.25	0.35			Fig.1
JK-H5	15.35	15.45	10.55	10.65	0.25	0.35			Fig.1
JK-H6	16.48	16.58	10.05	10.15	0.25	0.35			Fig.1
JK-H7	16.30	16.40	9.95	10.05	0.25	0.35			Fig.1
JK-H8	19.40	19.60	9.90	10.10	2.9	3.1	0.45	0.65	Fig.1
JK-H9	31.45	31.55	13.15	13.25	0.25	0.35			Fig.1
JK-H10	24.05	24.15	12.05	12.15	0.25	0.35			Fig.1
JK-H11	18.45	18.55	10.65	10.75	0.25	0.35			Fig.1
JK-H12	18.60	18.70	10.75	10.85	0.25	0.35			Fig.1
JK-H13	20.00	20.20	11.95	12.05	0.25	0.35			Fig.1

Product Application

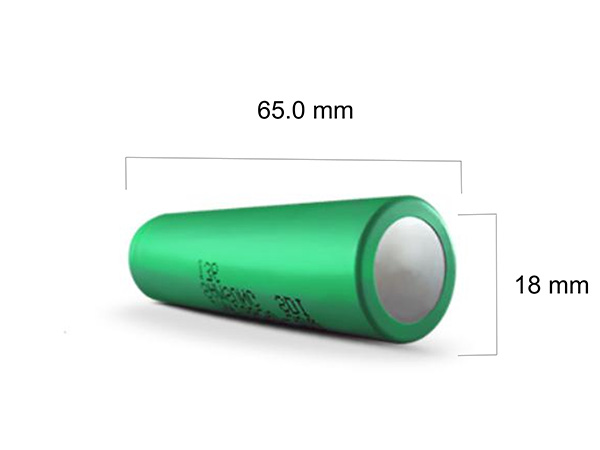

This type Resettable Fuse JK-H SERIES is a protection device for 18650 & 16650 Li-ion/Polymer Li-ion battery.
